- 1. Ultrasonic fogging technology can be used for many horticultural application including hydroponics, propagation, foliar feeding, grow room and greenhouse humidity generation.
- 2. With stainless steel water shortage automatic power-off sensor, high sensitivity.
- 3. Effective atomization object: regular tap water, electrolyzed water, purified water.
- 4. Applicable occasions: Widely used in the preservation of various garden pool foods, hot pot restaurant atmosphere setting, artificial landscape lights and many other occasions.
- 5.Work: control the working level of the atomizer.
Note: The atomizers' working voltage is DC48V , it needs a transformer (power supply) can be used.
Application:
1.Waterscape pool manufacturing fog
2.Spinning humidification
3.Tobacco humidification
4.Mushroom humidification
5.Greenhouse flowers humidification
6. Printed Electronics humidification
Parameter:

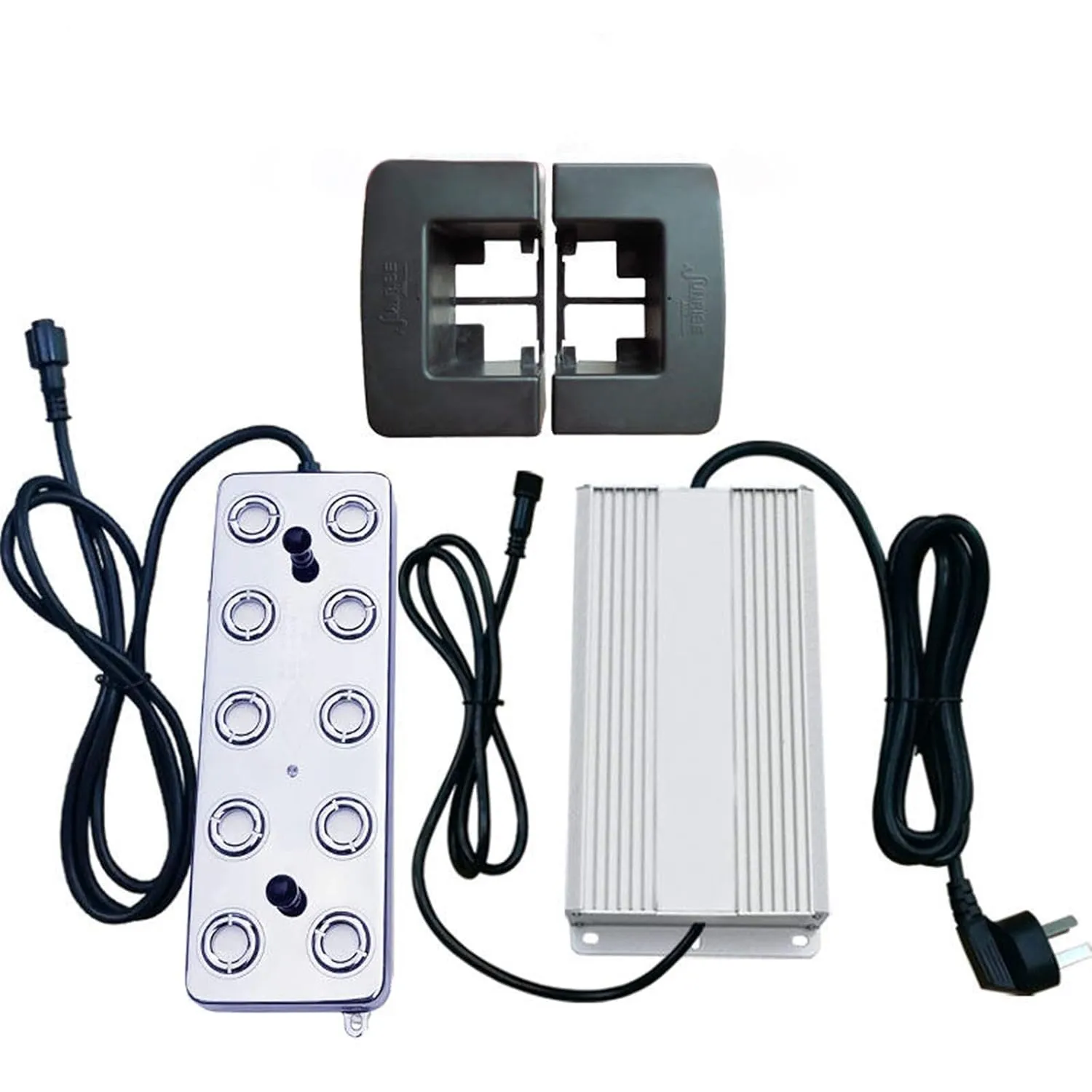

1. Atomizers
Voltage: DC48V
Power: 230W(5L)，250W(7L)
Current: 3.7A
Spray volume: 5kg/h(5L) or 7kg/h(7L)
Water supply pressure：0.01~0.2Mpa
Size: 253*88*28mm
Working water temperature: 5~55°C
Working water level: 9cm (depth greater than 15CM, buoy required)
Working environment: The atomizer must be placed in water to work.
Neutral water (tap water, pure water, etc.) and weak acid solution can only be atomized. Do not atomize alkaline solutions, strong acid solutions, and alcohol.
2. Transformer
Working principle: Convert AC220V to DC48V
Input voltage: AC220V
Output voltage: DC48V
Power: 350W (One power supply only support one atomizer),720W (One power supply can support two atomizer),
Precautions:
1. The transformer (switching power supply) must not be placed in a damp place. It should not be sealed. Use it in a dry and ventilated place.
2. Nebulizer: Red line is connected to V , and black line is connected to V-.
3. Plug wire: Yellow wire grounding wire, zero wire Fire wire wire N, L
3. Waterproof power supply
Working principle: Convert AC220V to DC48V
Input voltage: AC220V
Output voltage: DC48V
Power:350W
Precautions: The power supply should not be placed in water and it should not be exposed to sunlight. The power supply can rain and can be used in a wet place. It is recommended to use it in a cool, ventilated place.
4. Buoy
Work: control the working level of the atomizer
- Manufacturer : huijieus
