DESCRIPTION

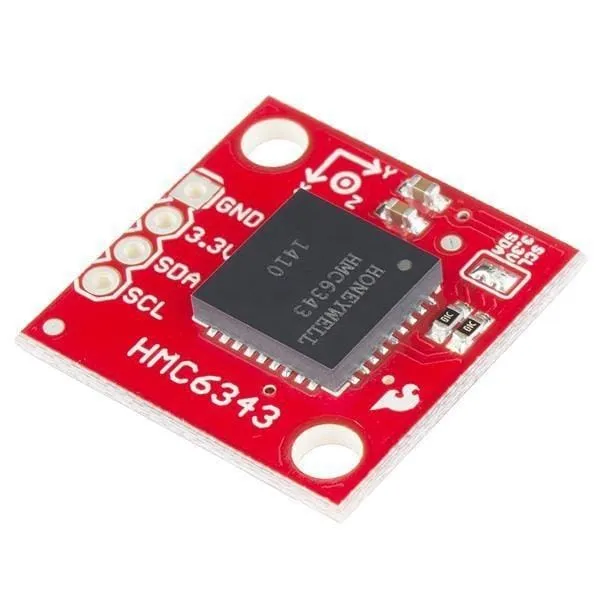

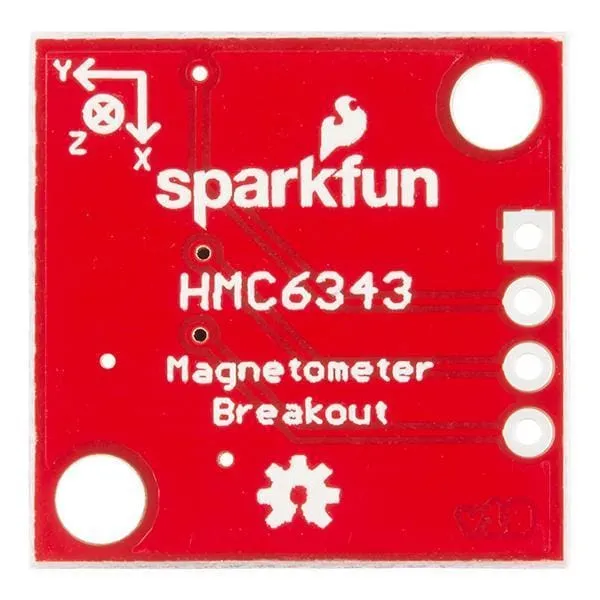

The HMC6343 is a fully integrated high end electronic compass module that can compute and give you a heading direction that's accurate within a couple of degrees. It is tilt compensated and is calibrated to handle magnetic distortions. This breakout board allows for easy use of the HMC6343. All that is required is power and I²C connections to a microcontroller so that the module can receive commands and send data back to the user.

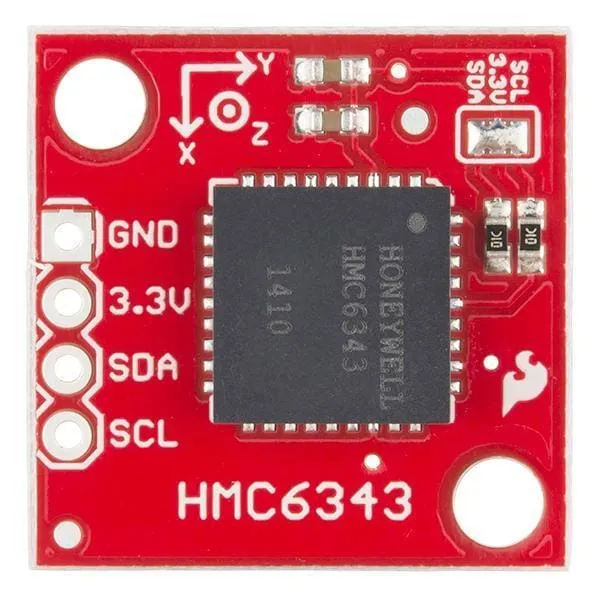

The IC combines 3-axis magneto-resistive sensors and 3-axis MEMS accelerometers, analogue and digital support circuits, a microprocessor and algorithms in firmware required for heading computation. The HMC6343 Breakout needs to be supplied with 3.3V @ 4.5mA and can measure and compute a heading direction every 200ms (5Hz). This board for the HMC6343 breaks out all the pins you'll need to send commands and collect data from the electronic compass including GND, 3.3V, SDA, and SCL.

FEATURES

• Operating Voltage: 3.3V
• Run Mode Current: 4.5mA
• Compass with Heading/Tilt Outputs
• 3-axis MR Sensors, Accelerometers and a Microprocessor in a Single Package
• EEPROM Memory
• I²C Interface

RESOURCES

• Schematic
• Eagle Files
• Hookup Guide
• Datasheet (HMC6343)
• GitHub (Example Code & Design Files)
• Product Video
