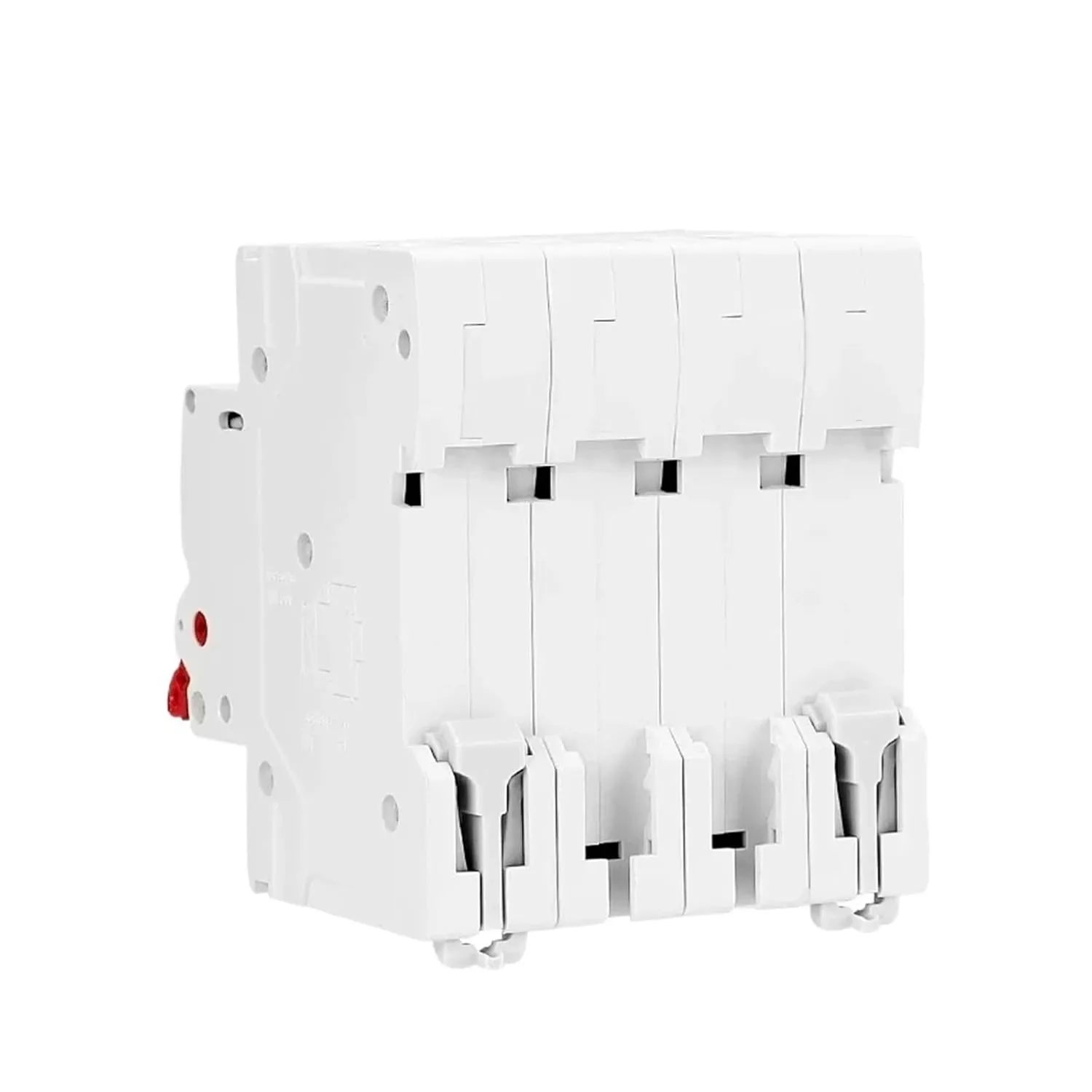

- 1.Premium DIN Rail Mount Design
- The DbvrhXmkn universal series circuit breakers adopt an industrial-grade DIN rail mounting system, compatible with standard 35mm rails, and feature a 3-second quick snap-on installation, significantly enhancing the assembly efficiency of distribution cabinets/industrial control boxes. The zinc alloy shell is impact-resistant and corrosion-resistant, suitable for harsh working conditions ranging from -25℃ to 70℃.
- 2. 1000V high-current DC protection expert
- Designed specifically for industrial-grade DC circuits, it features a 1000V DC withstand voltage and a wide current coverage of 15-100A, precisely matching high-load scenarios such as photovoltaic systems, energy storage devices, and electric vehicle charging stations. The patented arc extinguishing technology ensures stable breaking over 10,000 times, safeguarding the safety of equi-pment and personnel.
- 3. IP65 waterproof GFCI intelligent protection
- It integrates Type A leakage protection (GFCI) function, with 30mA sensitive detection and 0.1-second rapid res-ponse. It is particularly suitable for dangerous environments such as damp factories, under-ground distribution rooms, and ship engine rooms. The dual protection mechanism effectively prevents the risks of electric sh-ock and electrical fire.
- 4. All-scenario and multi-specification solutions
==========
Type : Mini
Type : Circuit breaker

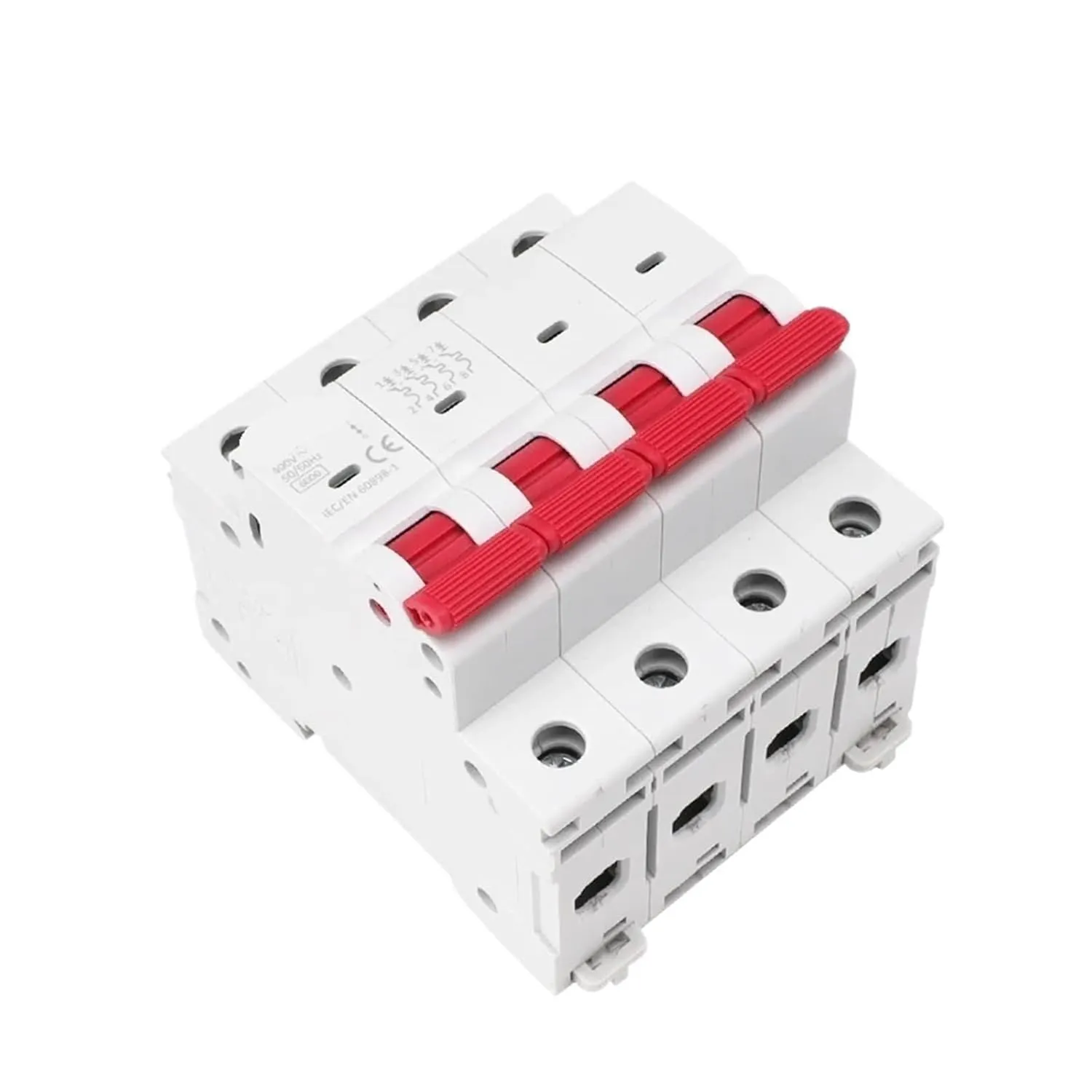

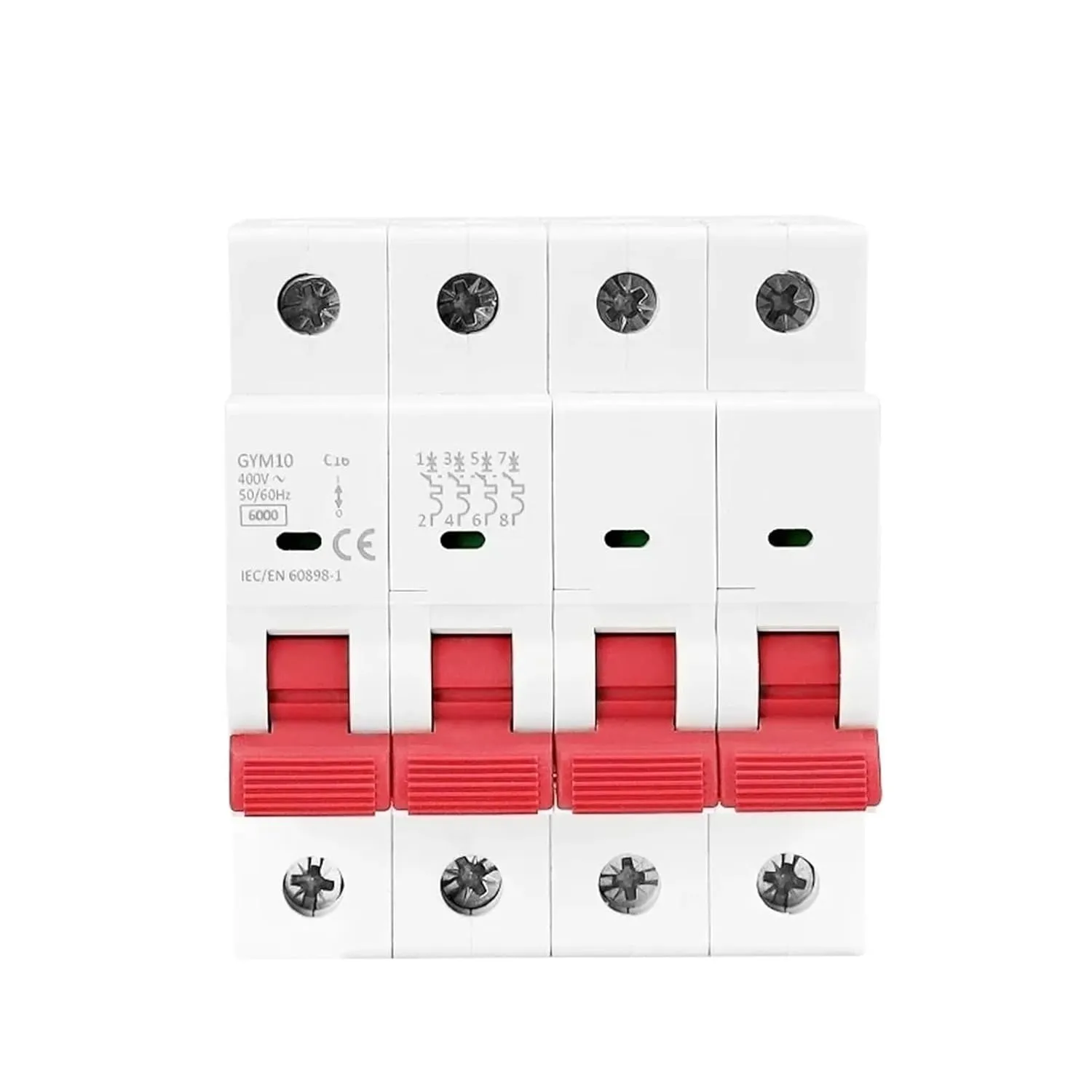

Model Number : GYM10 4P MCB 6KA
is_customized : Yes
Is Smart Device : No
Rated Voltage : 220/380V
Origin : Mainland China
Certification : CE,weee
Product Name : GYM10 Mini Circuit Breaker
Rated Current : 6A 10A 16A 20A 25A 32A 40A 50A 63A
Thermo-magnetic release charateristic : C Curve
Poles : 4Pole
Rated Voltage Ue : AC230/400V
Insulation Voltage Ui : 500V
Rated Frequency : 50/60Hz
Standard : IEC/EN60898-1
Breaking Capacity : 6KA
Electrical Life : 6000
Mechanical Life : 10000
Mounting : Din Rail
- Package Dimensions : 0.39 x 0.39 x 0.39 inches; 10.58 ounces
- Department : unisex-adult
- Date First Available : May 17, 2025
- Manufacturer : DbvrhXmkn
- Country of Origin : China
