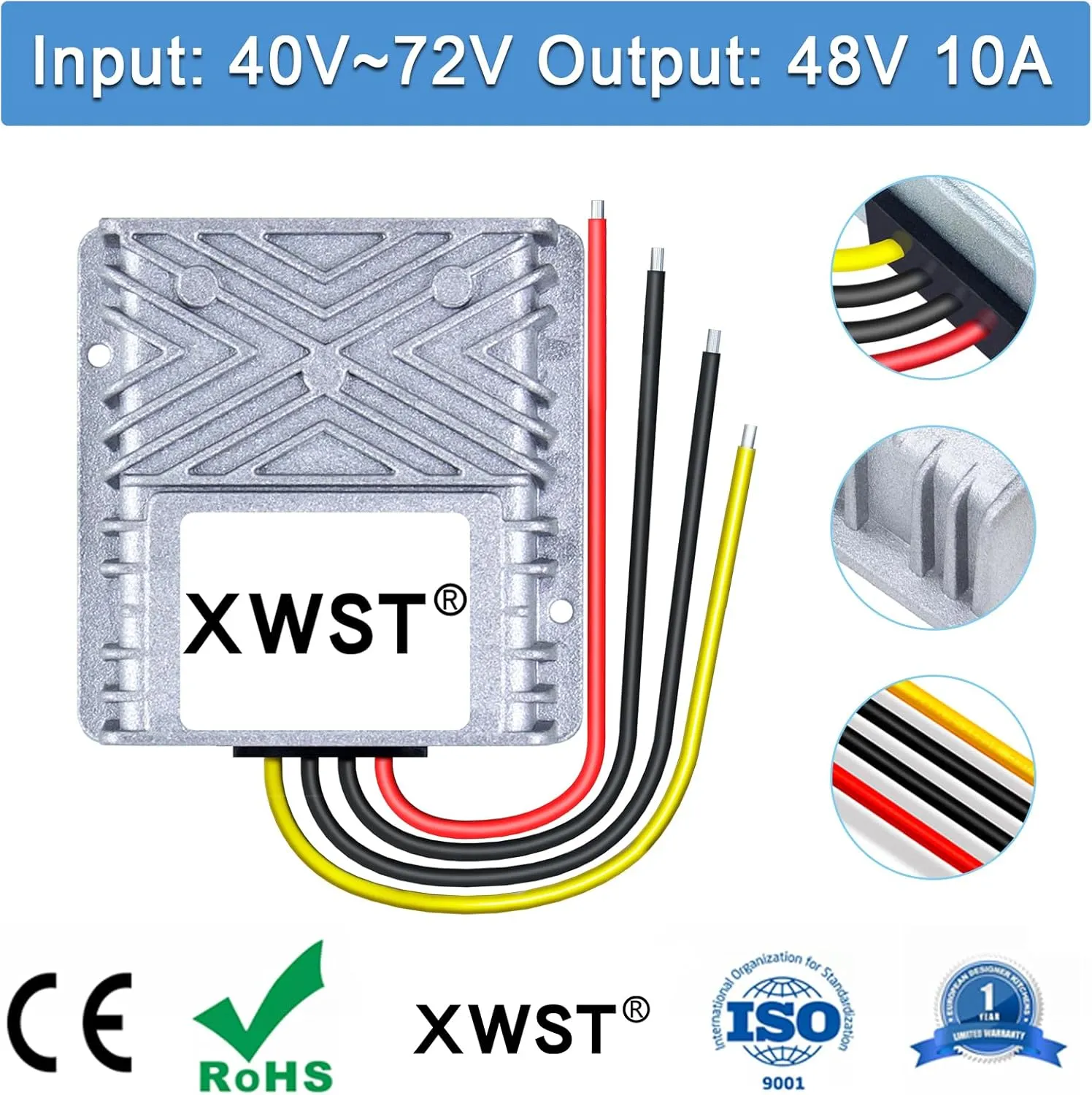

- PARAMETER --- XWST DC-DC converter input voltage range is DC 40~72V (48V); output voltage is DC48V; output current is 10A; output power is 480W.
- APPLICATION --- the 48v buck boost converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
- PROTECTION --- this voltage stabilizer comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.
- FEATURE --- the stabilizer power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated.
- NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.

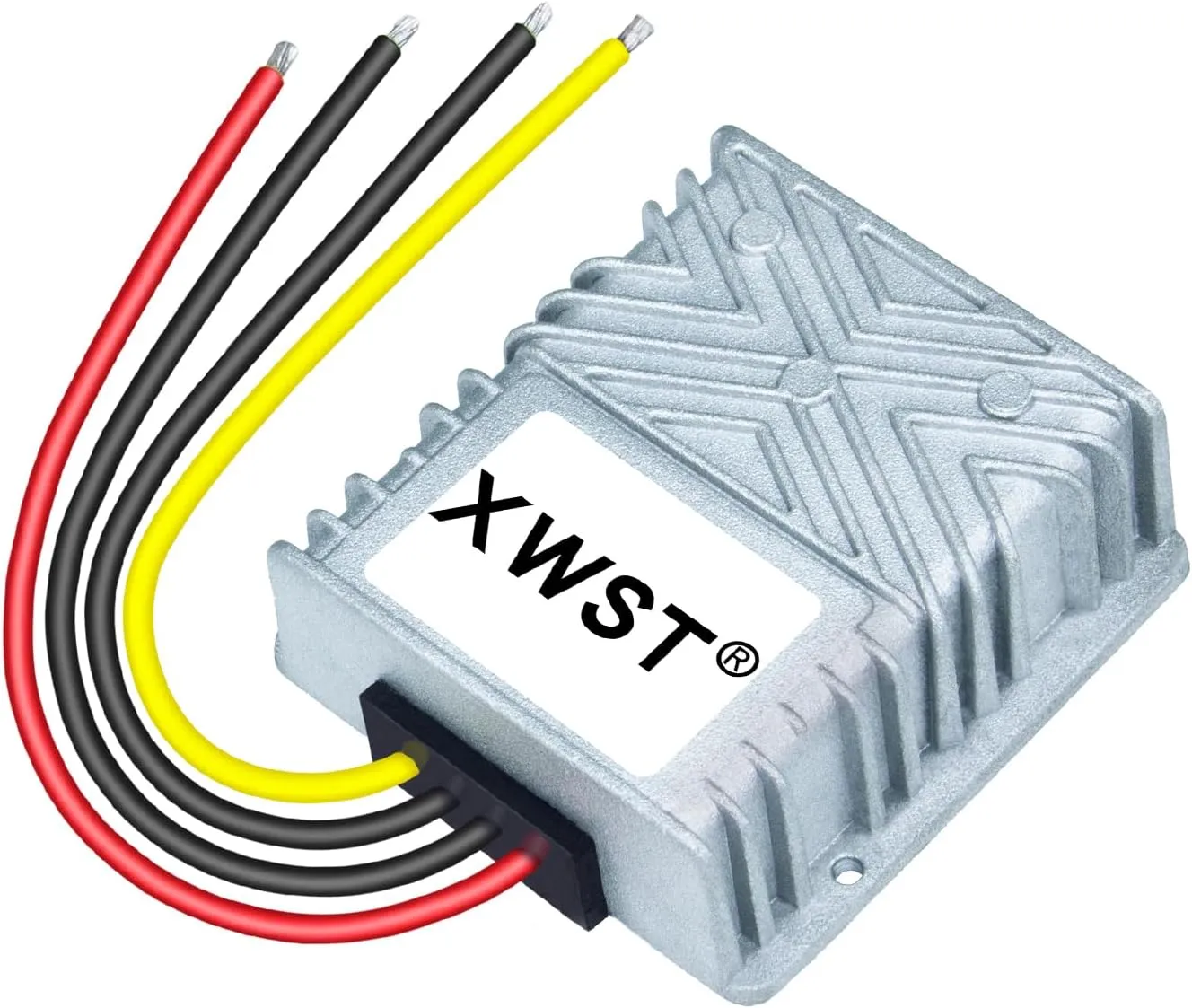

XWST DCDC Power Supply Stabilizer Module Technical Specification:
Input Voltage: DC 40V~72V (48V)
Output Voltage: DC 48V
Output Current: 10A
Output Power: 480W
Conversion Efficiency:>93%
No Load Voltage Range: Set voltage ±3%
Load Regulation: ±3%
Quiescent Power Dissipation: <10mA
Operating Temperature: -25~65℃
Storage Temprature: -30~80℃
Operating Humidity: 10%~90%
Waterproofing Grade: IP67
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No
Size: 75mm x73mm x 27mm
Net Weight: 280g
Material:aluminium shell
Note:
1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:
1x DC-DC Stabilizer
