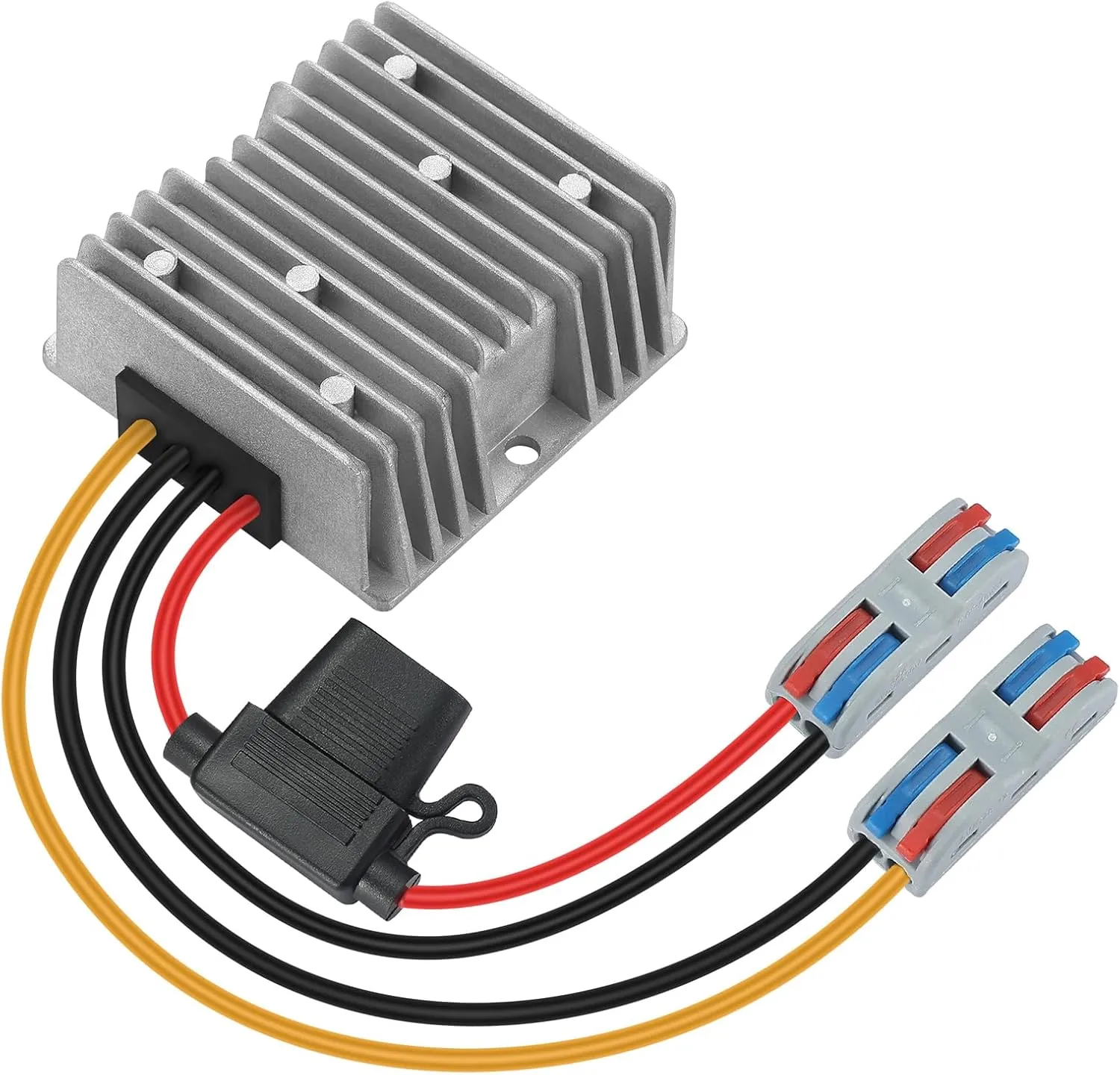

- Boost Converter : Input voltage range: 10-22V; Rated input voltage: 12V; Output voltage: 24V; Output current: 15A MAX; Output power: 360W MAX.

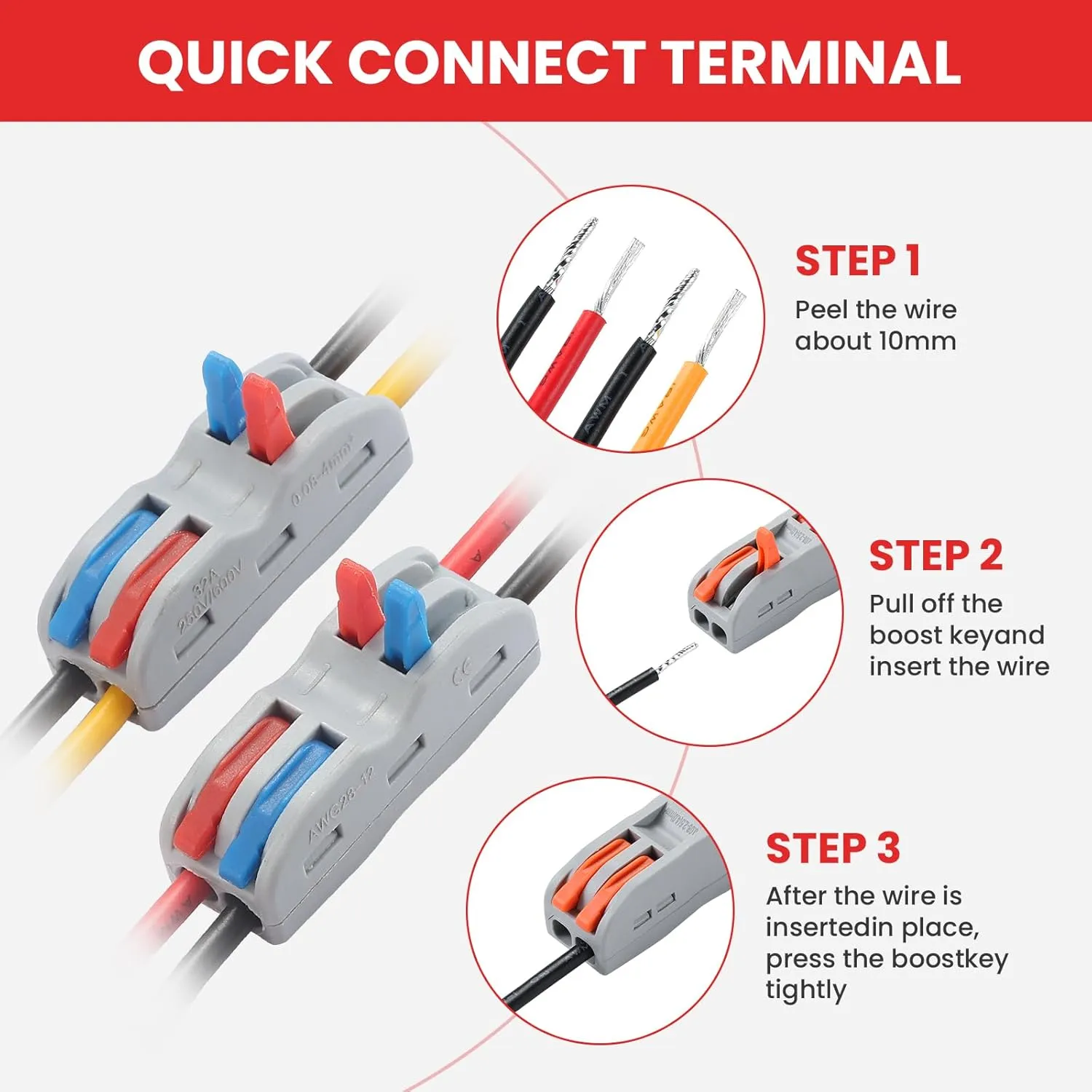

- Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage step-up regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.

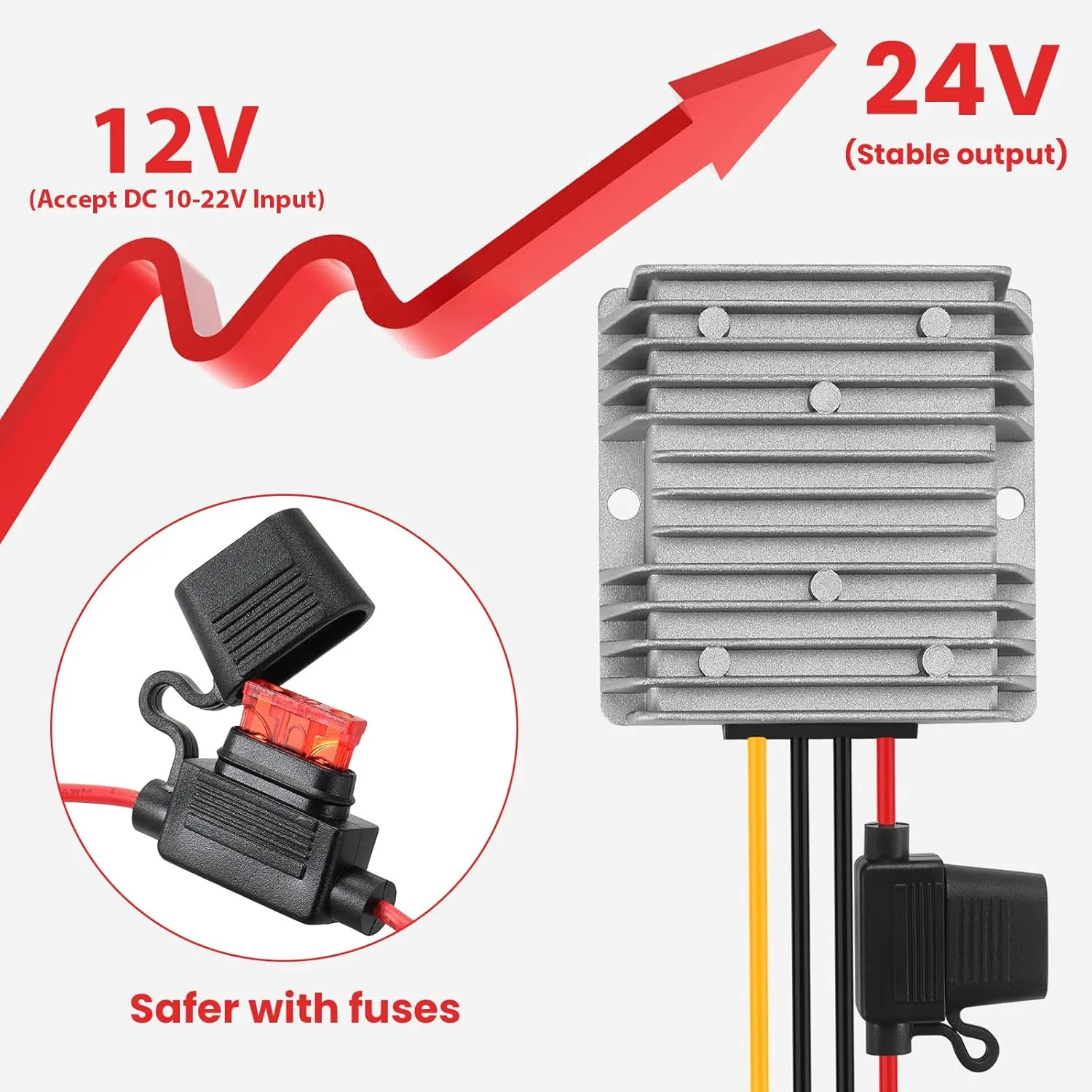

- Fuse Protection Function: The 10-22V to 24V 15A buck converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.
- IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous step-up technology and has IP67 waterproof function.
- Wide Range of Applications: DC-DC waterproof step-up converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans, DIY and other fields.
Electrical parameters
model:C10-22 to 24V15A
input parameter
Input range： 10-22V
Rated input voltage：12V
transfer efficiency：95%

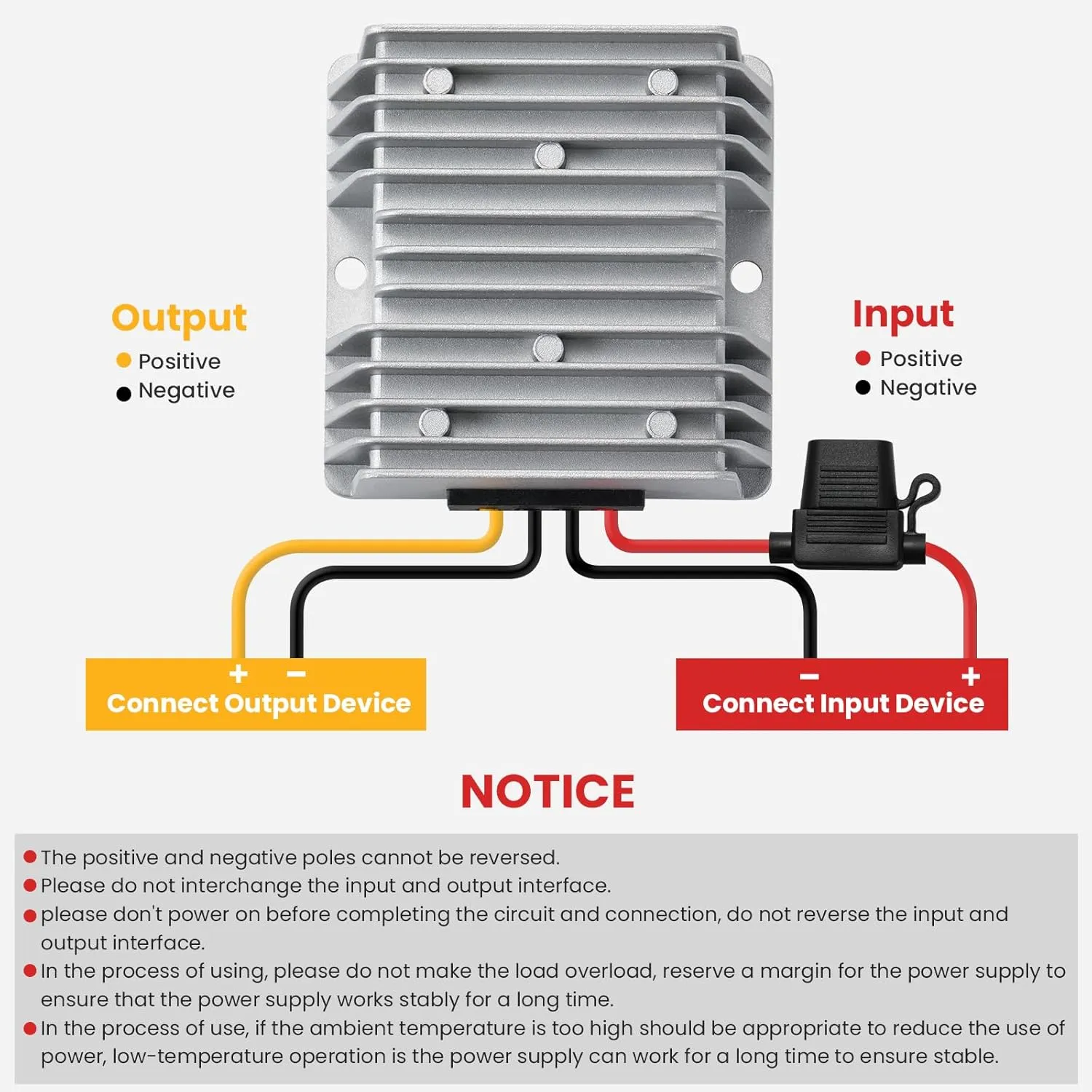

incoming line：15-16CM(R B-)
output voltage：24V
Output：15A MAX
Maximumoutput：360W MAX
No-load adjustment rate：2%
load regulation：3%
quiescent dissipation：≤40MA
ripple wave：300mVP-P
The oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor.
outlet line：15-16CM(Y B-))
enviromental parameter
working temperature：-20-65°
Storage temperature：-40-85°
Working humidity：10%-90%RH
defencive function
classification of waterproof：IP67
Other
Weight：0.62 lb
Size：2.91*2.91*1.26 inch
Heat dissipation method：natural heat dissipation
matters need attention
1.memory：The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.
2.Do not use it near a heat source (such as a fire or a heater).
3.Do not connect the input line to 220V electricity.
4.Do not put the product into the fire or heat it.
5.Do not short-circuit the positive or negative poles of the product with wires or other metal objects.
Non-professional personnel are prohibited to disassemble and repair by themselves.
