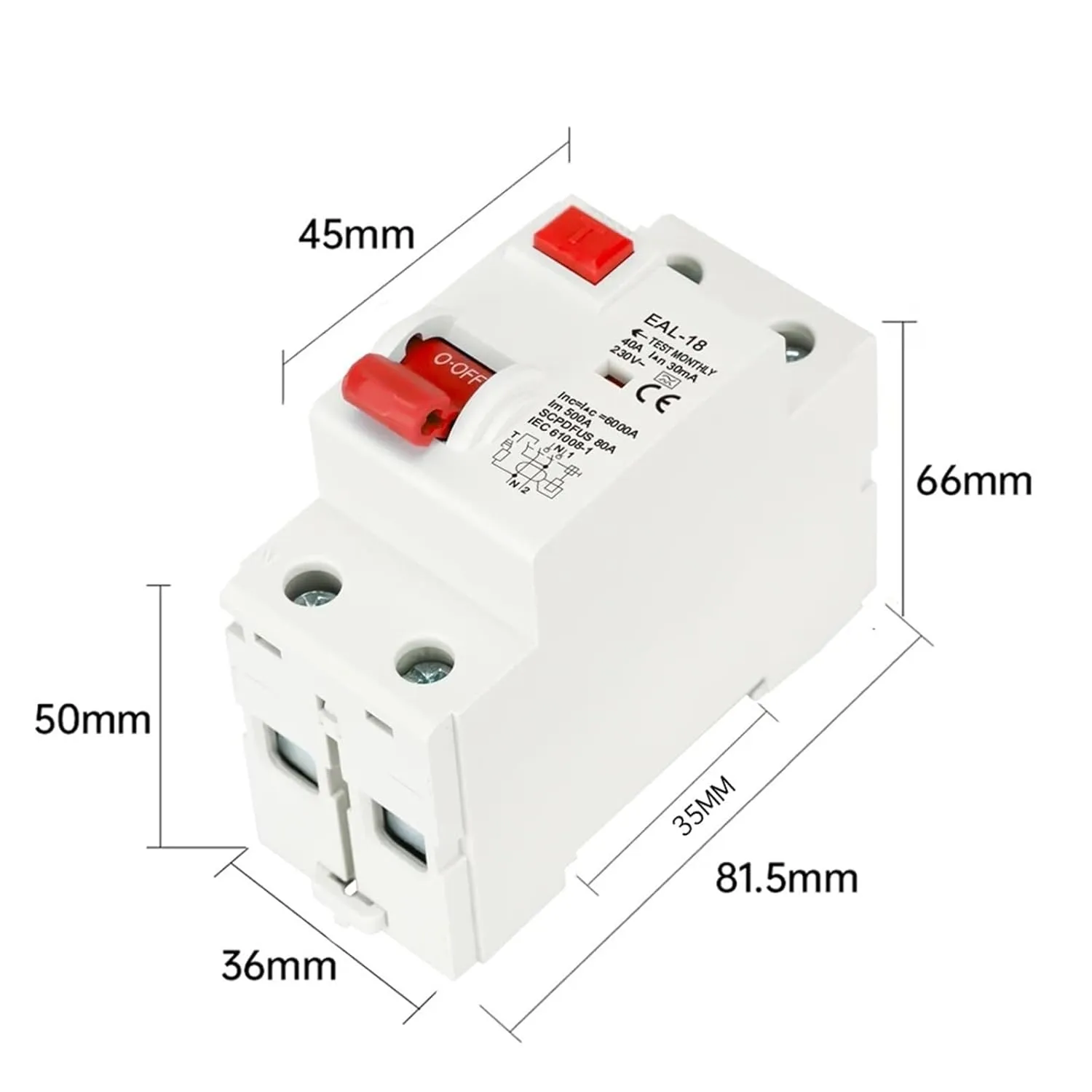

- 1.Premium DIN Rail Mount Design
- The DbvrhXmkn universal series circuit breakers adopt an industrial-grade DIN rail mounting system, compatible with standard 35mm rails, and feature a 3-second quick snap-on installation, significantly enhancing the assembly efficiency of distribution cabinets/industrial control boxes. The zinc alloy shell is impact-resistant and corrosion-resistant, suitable for harsh working conditions ranging from -25℃ to 70℃.
- 2. 1000V high-current DC protection expert
- Designed specifically for industrial-grade DC circuits, it features a 1000V DC withstand voltage and a wide current coverage of 15-100A, precisely matching high-load scenarios such as photovoltaic systems, energy storage devices, and electric vehicle charging stations. The patented arc extinguishing technology ensures stable breaking over 10,000 times, safeguarding the safety of equi-pment and personnel.
- 3. IP65 waterproof GFCI intelligent protection
- It integrates Type A leakage protection (GFCI) function, with 30mA sensitive detection and 0.1-second rapid res-ponse. It is particularly suitable for dangerous environments such as damp factories, under-ground distribution rooms, and ship engine rooms. The dual protection mechanism effectively prevents the risks of electric sh-ock and electrical fire.
- 4. All-scenario and multi-specification solutions
==========
Hign-concerned Chemical : None

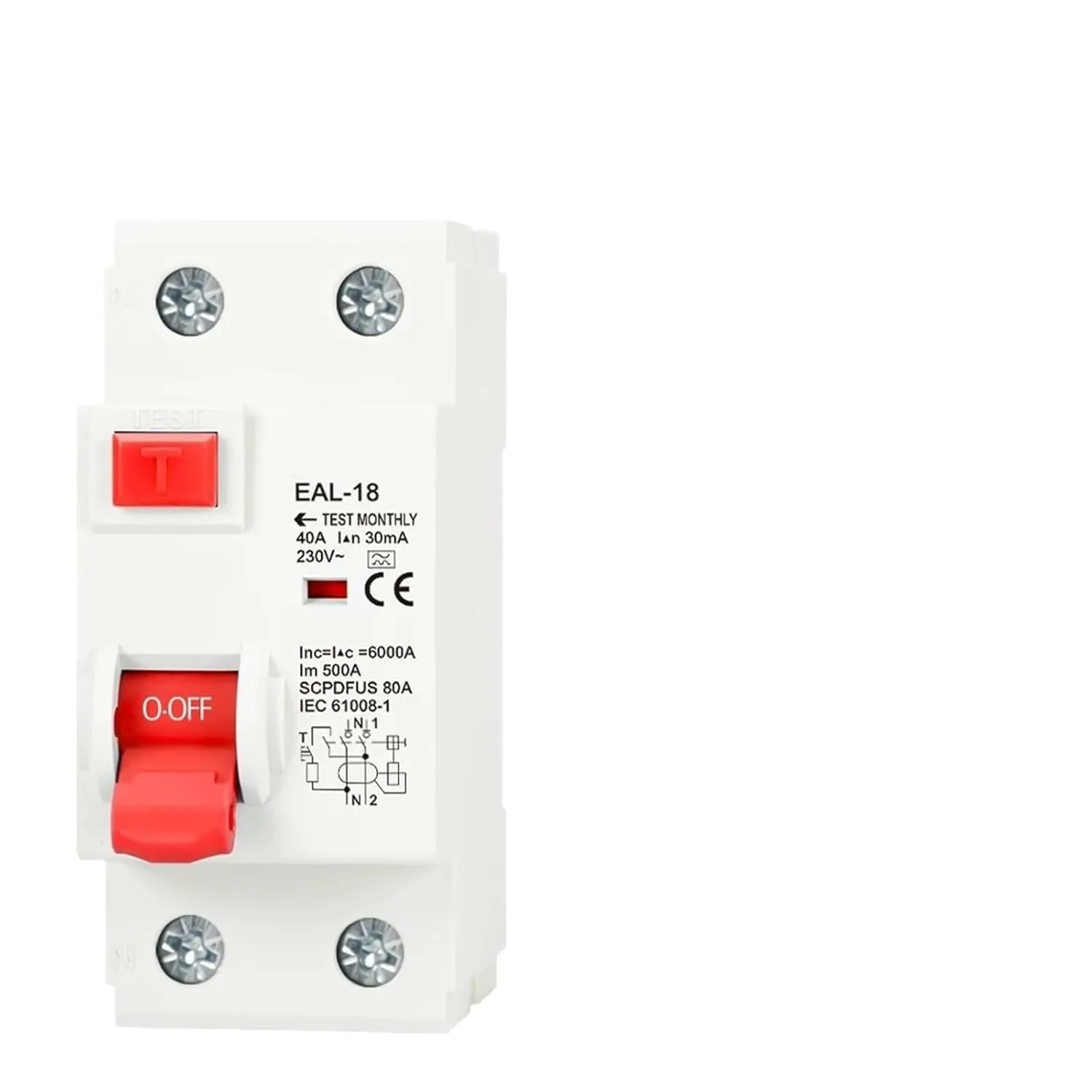

Type : Residual Current
Type : RCD
Model Number : RCCB
is_customized : Yes
Is Smart Device : No
Rated Voltage : 220V
Origin : Mainland China
Breaking Capacity : 6KA
Rated Sensitivity : 10mA 30mA 100mA 300mA
Standard : IEC61008-1

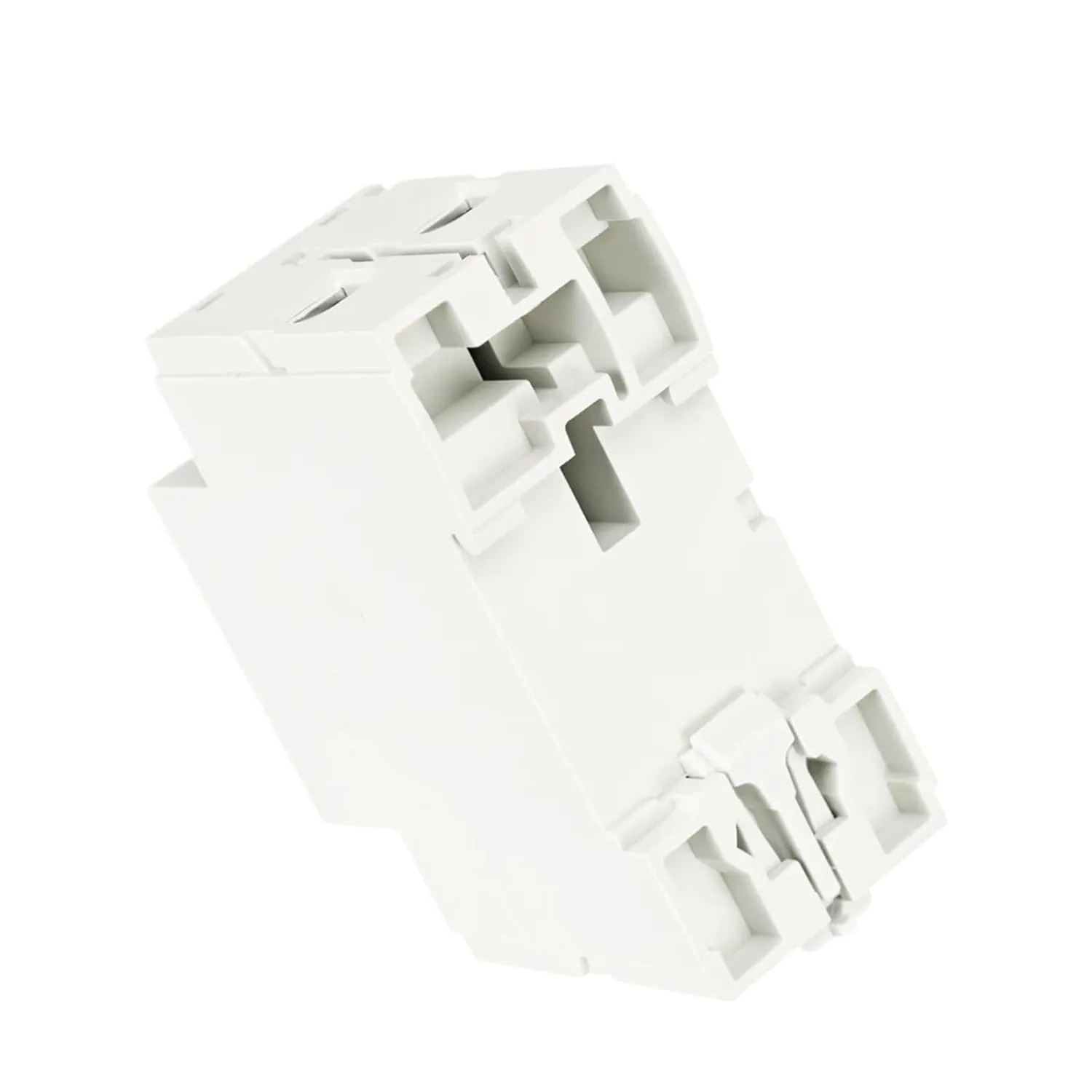

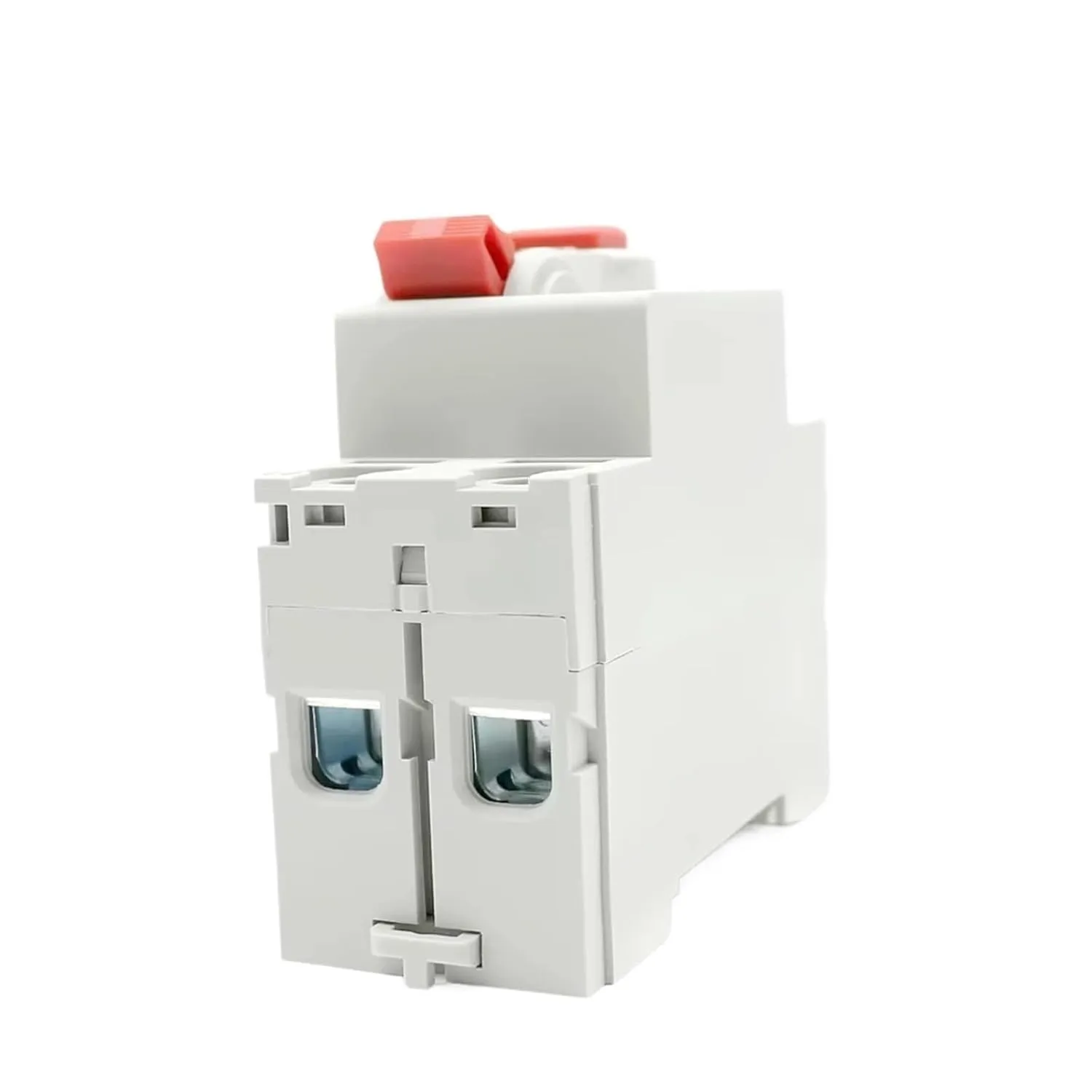

Mounting : Din Rail
Rated Frequency : 50/60Hz
Rated Current : 6A.10A.16A.20A.25A.32A.40A.50A.63A
Poles : 2P
Type of leakage : A Type
Type : Electromagnetic
Material : Flame Retardant Material
Function : Leakage Protection
Rated voltage : 230V
Insulation voltage : 500v
Rated sensitivity : 0.03A 0.1A 0.3A 0.01A
Break time under : 0.1s
Storage temperature : -25- 70
Ambient temperatur(with daily average35) : -5- 40
Dielectric test voltage at and ind.Freq.for.1min : 2.5kV
Electrical life and Mechanical life : 4000
Faule current indicator : No
Model Number 1 : RCD
Model Number 2 : ELCB
- Package Dimensions : 0.39 x 0.39 x 0.39 inches; 10.58 ounces
- Department : unisex-adult
- Date First Available : May 17, 2025
- Manufacturer : DbvrhXmkn
- Country of Origin : China
