- Converts 12V/24V DC input to a stabilized 48V output (up to 5A), delivering 240W of continuous power with 92% efficiency - ideal for power-hungry equipment
- Aluminum waterproof housing ensures stable operation even in high-temperature environments (-25°C to 65°C)
- Precise output monitoring to prevent under/over voltage damage to connected equipment.
- Integrated overvoltage, overcurrent, short-circuit and thermal protection protects both the converter and the device.
- Well suited for golf carts, solar power systems, CCTV cameras, motorized scooters, industrial equipment and other 48V DC devices.

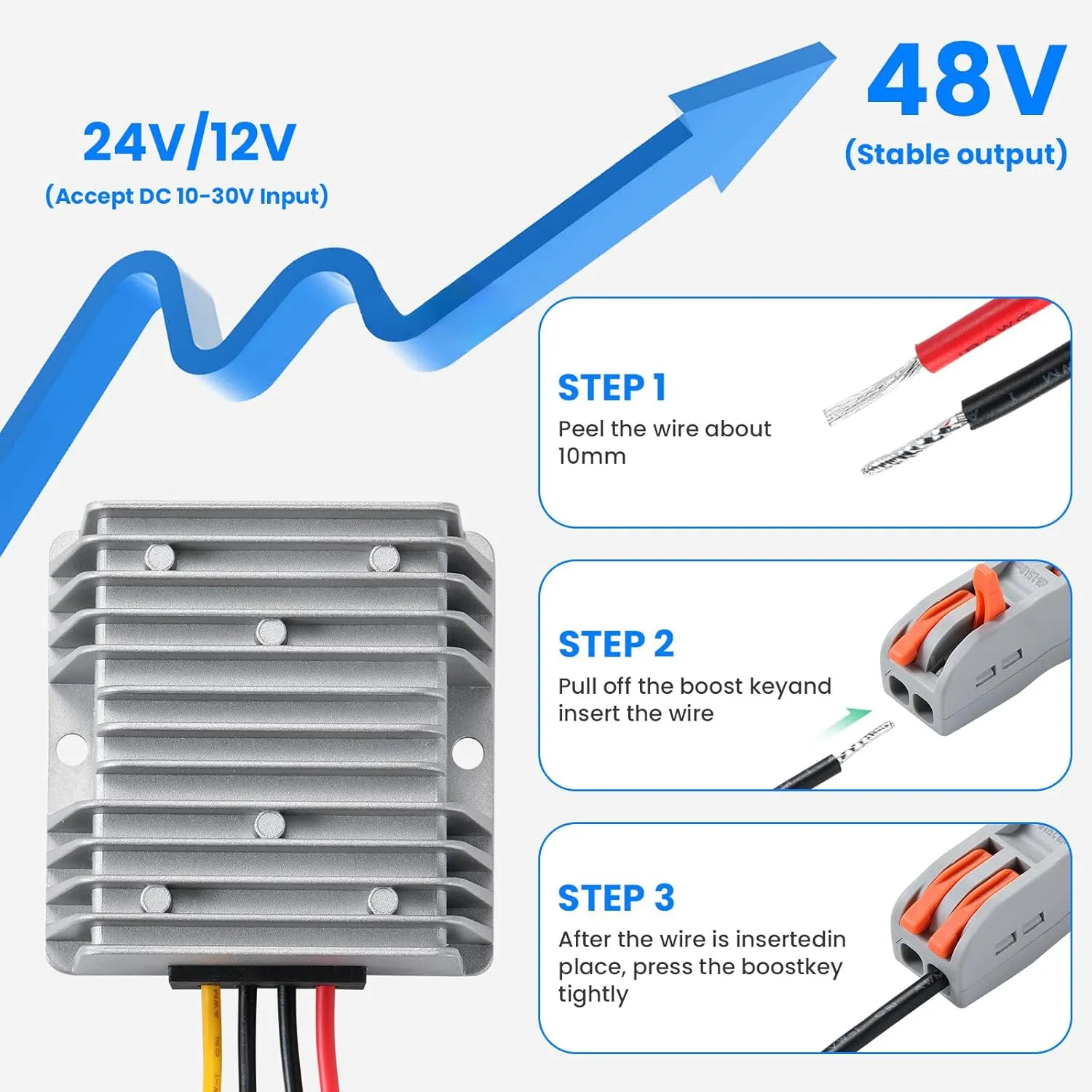

DC/DC 12V BOOST to 48V5A Voltage Transformer
Parameters
Name：Voltage Boost Supply Converter
Brand: MZHOU
Model：F30S48V5A5L
Input Voltage: 12V DC
Output voltage: 48V DC
Output power:240W Max
Output current: 5A
Working temperature: -25℃ ～ 65℃
Storage temperature：-40℃ ～ 85℃

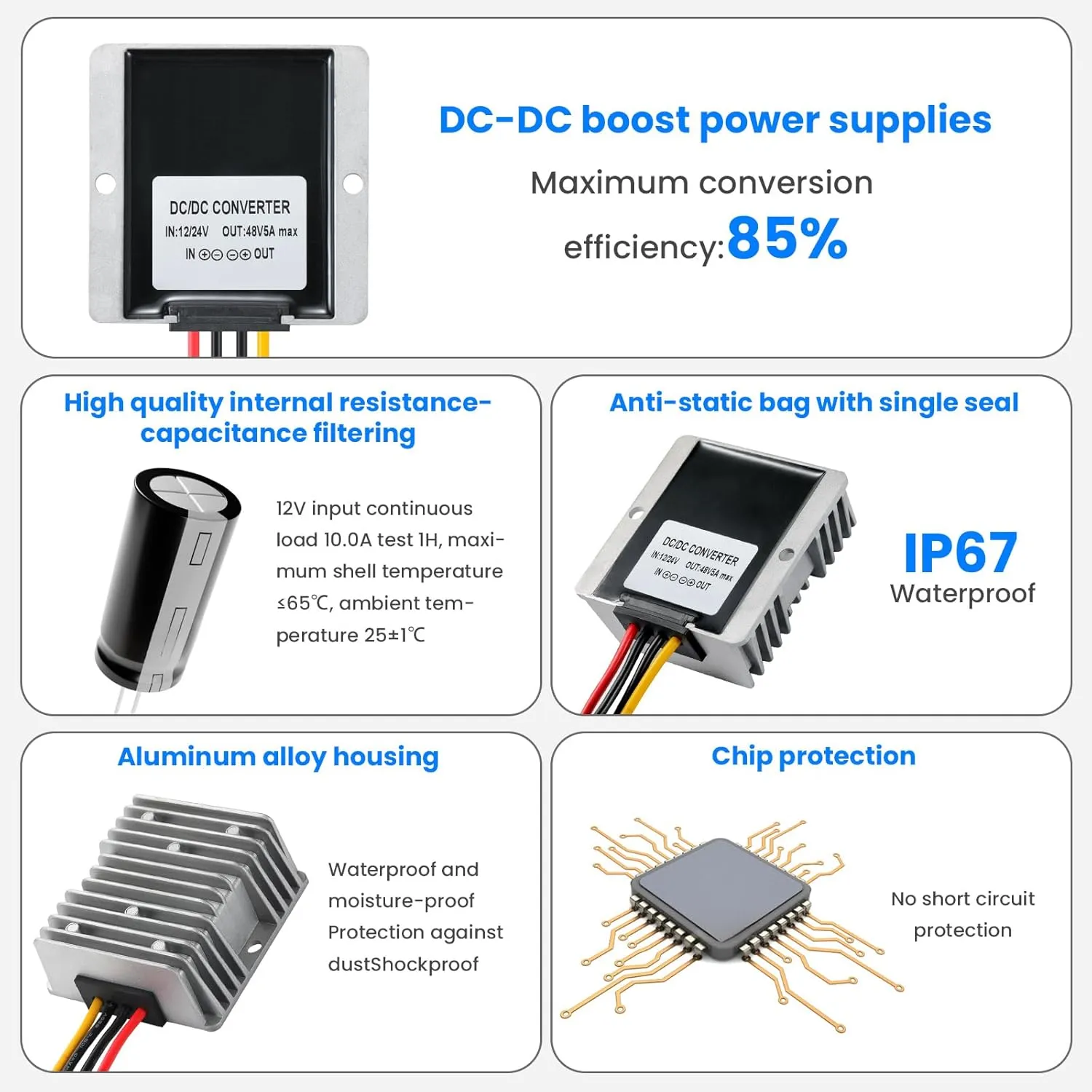

Features
1.Integrated IC design, featuring high conversion efficiency, small size, stability and reliability, with potting process.
2.Waterproof--Conforms to the waterproof grade IPX-7. 60 minutes of water immersion and power-on working test with load test, the module does not have any failure.
3. Dust-proof - The module is protected by high grade silicone sealing potting to ensure that the internal electronic components are isolated from the external environment and meet the requirements of dust-proof.
4. Anti-vibration - the module adopts silicone sealing potting protection to ensure that the internal electronic components are isolated from the external environment, in line with the requirements of anti-vibration.
The module adopts silicone sealing potting protection to ensure that the internal electronic components are isolated from the external environment and meet the requirements of national standard GB/T 2423.10.
Cautions
①Cold sure way: natural air cooling.
②Store the product in a dry and cool place with the temperature range between -40℃～80℃, avoid contact with corrosive substances, and keep away from fire and heat sources.
③It is recommended that the maximum power be used with a load for no more than 5 minutes.

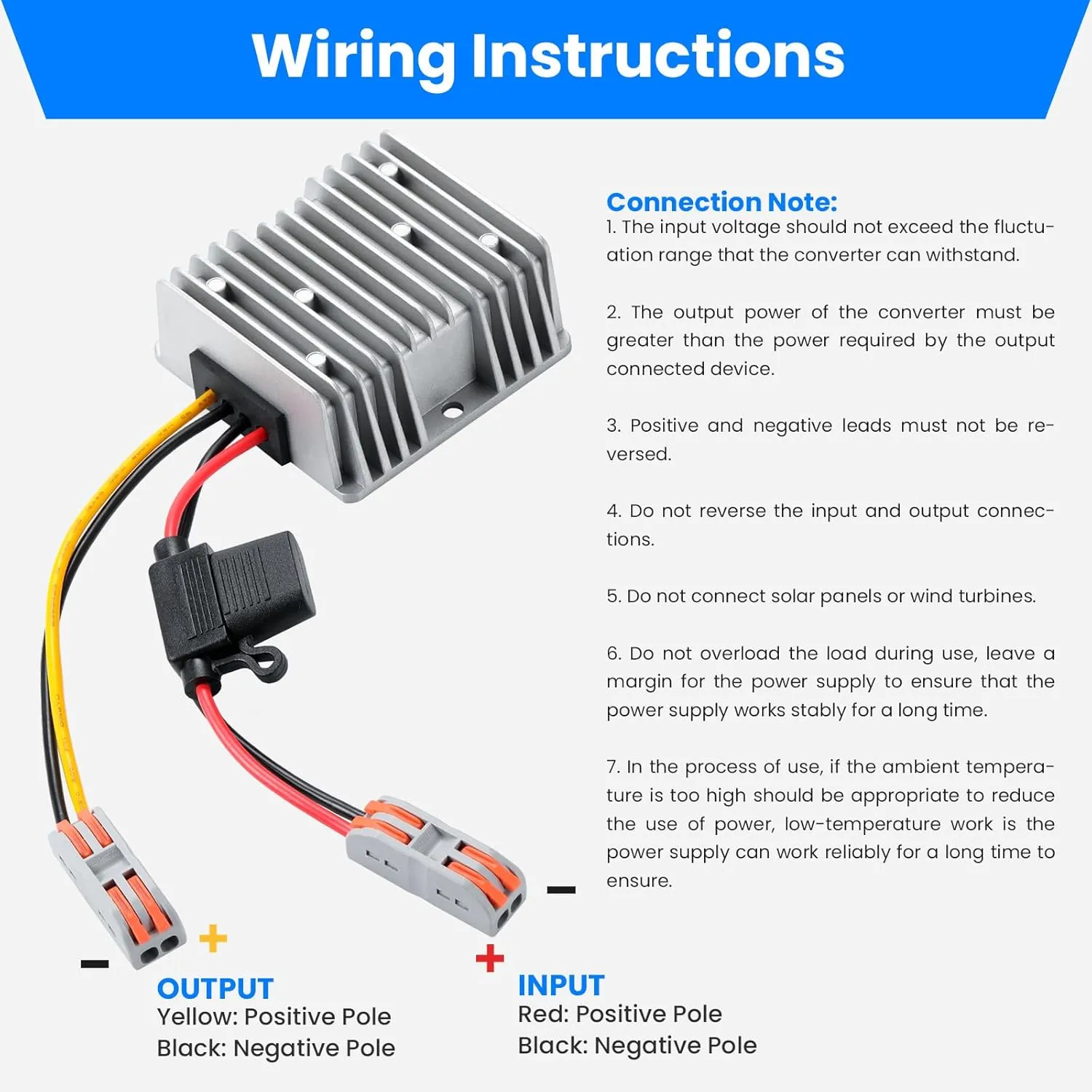

④Can not be reversed, the power supply does not have reverse connection protection, reverse connection will damage the power supply.
⑤The use of the process can not be overloaded load, leave a margin for the power supply to ensure long-term stability of the power supply work.
Package Includes

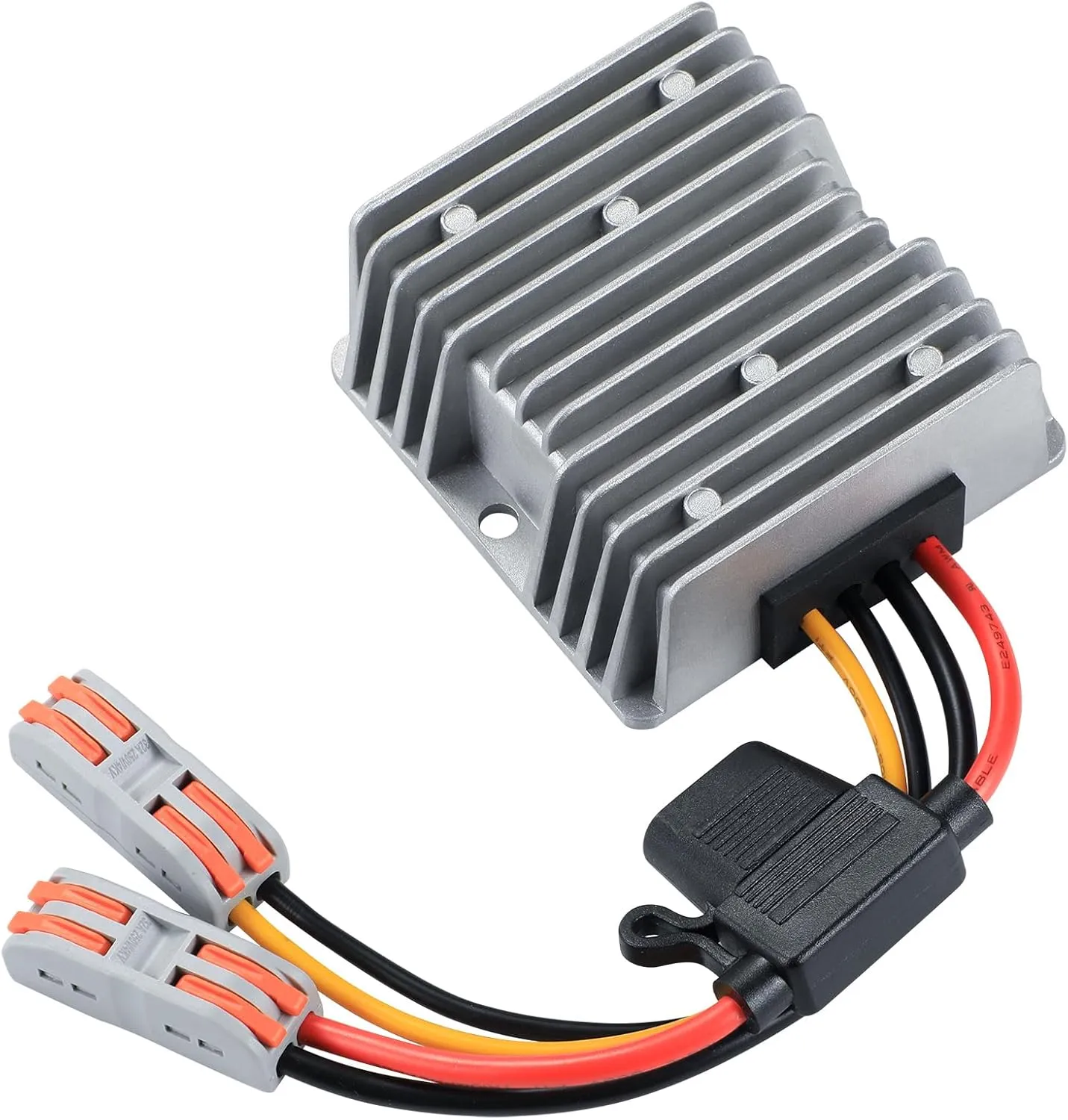

1x DC to DC Voltage Boost Transformer
Please feel free to contact us if you have any questions with installation or quality.
