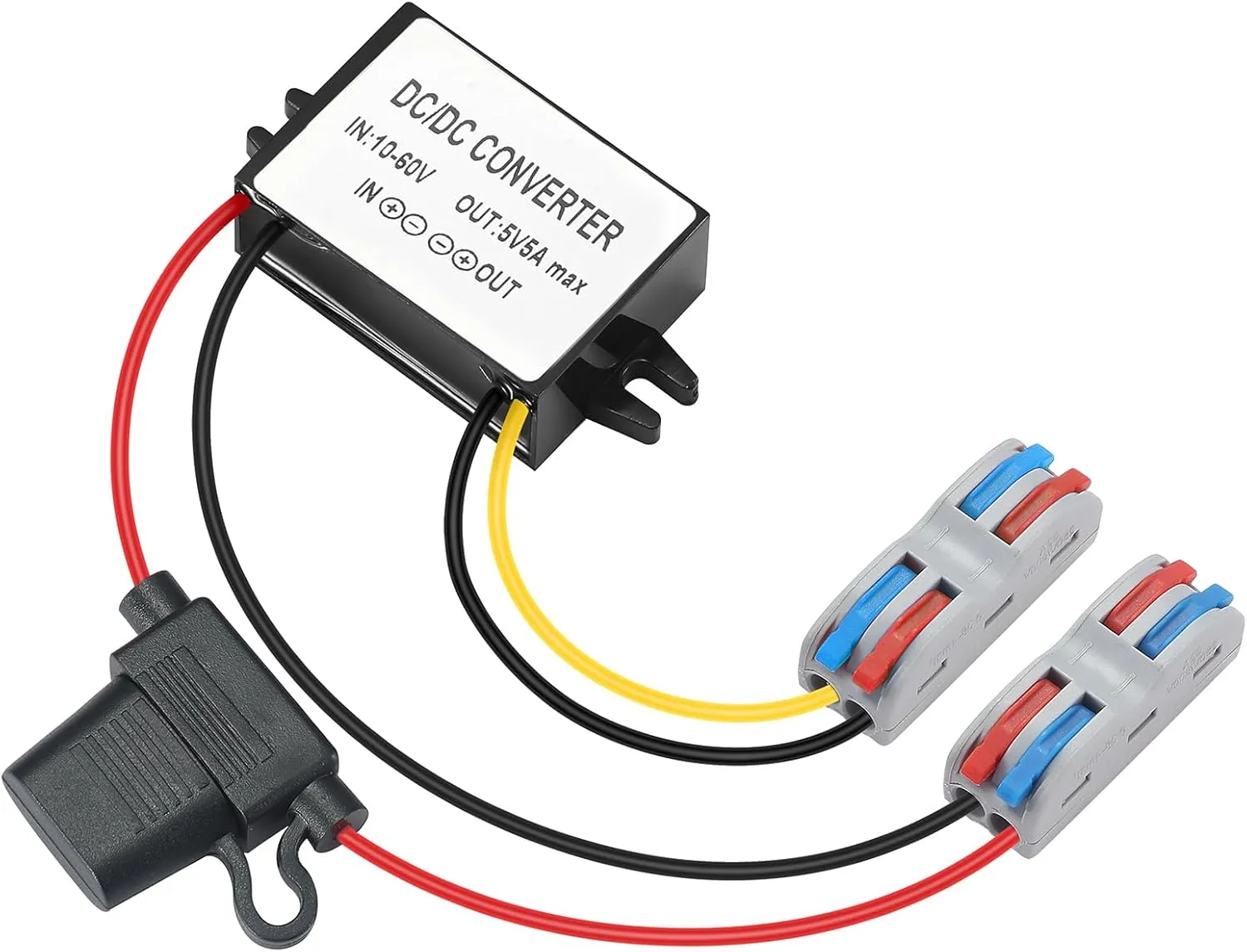

- Buck Converter : Input voltage range: 10-60V; Rated input voltage: 12/24/36/48V; Output voltage: 5V; Output current: 5A MAX; Output power: 25W MAX.
- Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage step-down regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.
- Fuse Protection Function: The 10-60V to 5V5A buck converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.
- IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous step-down technology and has IP67 waterproof function.
- Wide Range of Applications: DC-DC waterproof step-down converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans and DIY.
Electrical parameters
model:C10-60J5V5A2S
input parameter
Input range： 10-60V
Rated input voltage：12/24/36/48V
transfer efficiency：95%
incoming line：15-16CM(R B-)
output voltage：5V
Output：5A MAX
Maximumoutput：25W MAX
No-load adjustment rate：2%
load regulation：3%
quiescent dissipation：≤15MA
ripple wave：200mVP-P
The oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor.
outlet line：15-16CM(Y B-)
enviromental parameter
working temperature：-20-65°
Storage temperature：-40-85°
Working humidity：10%-90%RH
defencive function
classification of waterproof：IP67
Other
Weight：0.11lb
Size：1.81*1.26*0.71 inch
Heat dissipation method：natural heat dissipation
matters need attention
13.memory：The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.
14.Do not use it near a heat source (such as a fire or a heater).
15.Do not connect the input line to 220V electricity.
16.Do not put the product into the fire or heat it.
17.Do not short-circuit the positive or negative poles of the product with wires or other metal objects.
18.Non-professional personnel are prohibited to disassemble and repair by themselves.
